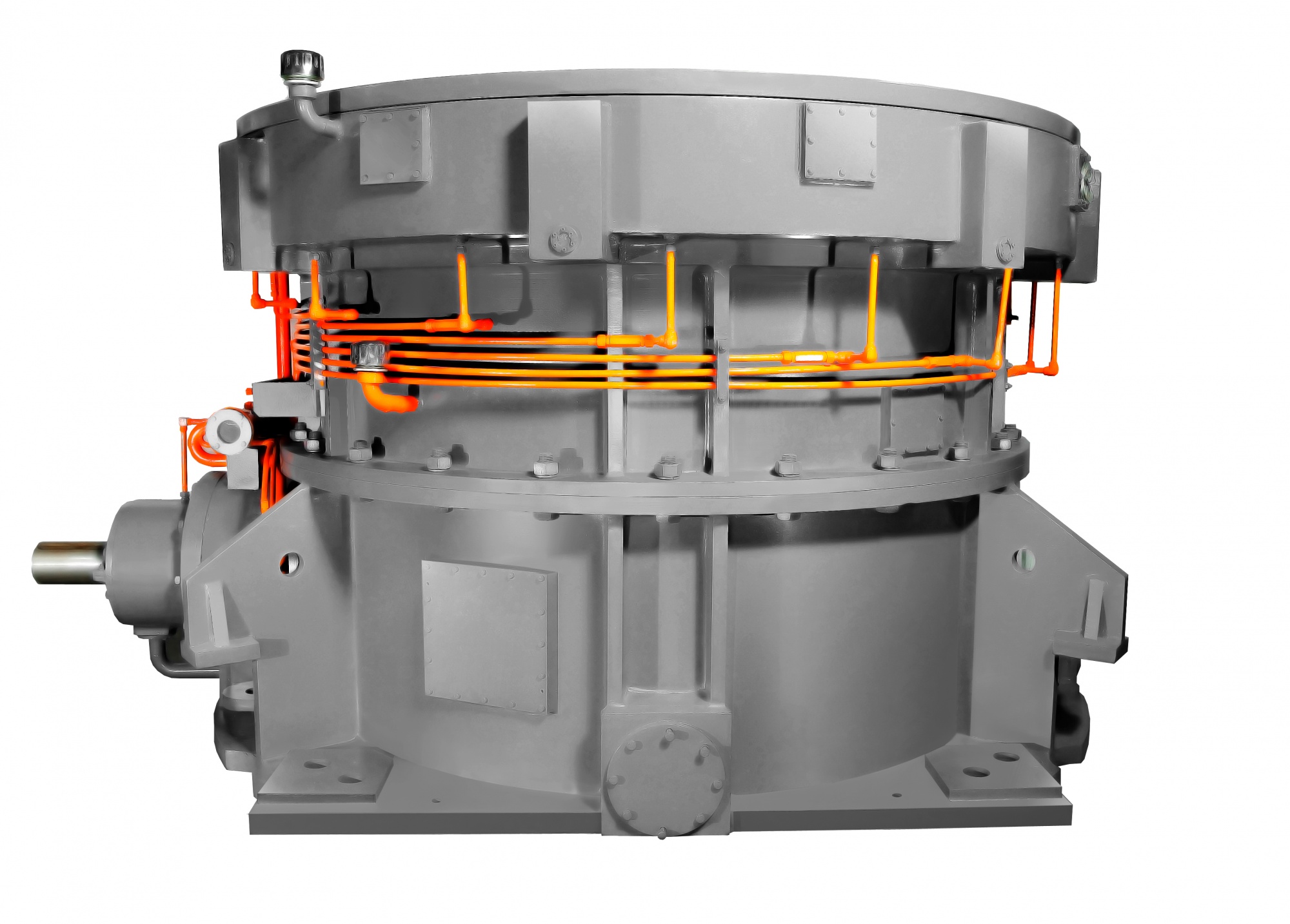

JQLX Series Vertical Mill Bevel Planetary Gear Reducer

    1. The JQLX series vertical mill reducer has the advantages of small size, high efficiency, low noise and vibration, smooth operation, safety and reliability.

    2. The JQLX series vertical mill reducer is widely used in industries such as building materials, metallurgy, power, slag grinding, and chemical industry.

    3. The JQLX series vertical mill reducer adopts a combination of bevel gears, parallel axis cylindrical gears, and planetary gears to achieve power input and output steering and a large reduction ratio.

    4. Adopting a cylindrical box structure, the static pressure thrust bearing is rigidly supported on the box, bearing the enormous pressure and vibration load during the operation of the mill.

    5. Using computer optimization design, the main components are standardized, serialized, universal, and modular. The gear components are made of high-quality alloy steel and adopt carburization, quenching, grinding, and tooth profile adjustment techniques.

  • Parameters

    1. The JQLX series vertical mill reducer has the advantages of small size, high efficiency, low noise and vibration, smooth operation, safety and reliability.

    2. The JQLX series vertical mill reducer is widely used in industries such as building materials, metallurgy, power, slag grinding, and chemical industry.

    3. The JQLX series vertical mill reducer adopts a combination of bevel gears, parallel axis cylindrical gears, and planetary gears to achieve power input and output steering and a large reduction ratio.

    4. Adopting a cylindrical box structure, the static pressure thrust bearing is rigidly supported on the box, bearing the enormous pressure and vibration load during the operation of the mill.

    5. Using computer optimization design, the main components are standardized, serialized, universal, and modular. The gear components are made of high-quality alloy steel and adopt carburization, quenching, grinding, and tooth profile adjustment techniques.

The JQLX series vertical mill reducer is widely used in industries such as building materials, metallurgy, power, slag grinding, and chemical industry. The JQLX series reducer complies with the JC/T878.4-2001 building materials industry standard. The JQLX series vertical mill reducer adopts a combination of bevel gears, parallel axis cylindrical gears, and planetary gears to achieve power input and output steering and a large reduction ratio. By changing the arrangement position of the bevel gears, the input and output steering can be the same or opposite without adding more parts.

Using computer optimization design, the main components are standardized, serialized, universal, and modular. The gear components are made of high-quality alloy steel and adopt carburization, quenching, grinding, and tooth profile adjustment techniques.

Adopting a cylindrical box structure, the static pressure thrust bearing is rigidly supported on the box, bearing the enormous pressure and vibration load during the operation of the mill.

The planetary gear and inner gear ring adopt a floating flexible structure, effectively achieving equal load of the planetary gear, overcoming the uneven load of each planetary gear caused by the insurmountable comprehensive error caused by the machining and assembly of the planetary carrier and planetary gear, and improving the smoothness and service life of gear operation. The output flange and output shaft are connected by tooth profile winding, effectively blocking the impact load and vibration of the mill on the gears. Years of online operation of hundreds of products have proven that the JQLX series vertical mill reducer has the advantages of small size, high efficiency, low noise and vibration, smooth operation, safety and reliability.

JQLX Series Vertical Mill Bevel Planetary Gear Reducer
